Infrared thermal camera 320*240 TFT LCD display thermal imager

Kindly Note Before Order

About product:Our products are 100% brand new and original, come from Chinese factory, support English, please rest assured purchase.

English manual:We have the English manual of this product, if you need, please contact me, I will send to your mailbox.

  About tariff  : Please do not worry about tariffs, we will write in accordance with your request low declaration of the price, Brazilian buyers need to provide tax ID

Warranty:  All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.

Shipping:Most countries are  take about 7-15 days.

product description

A multi-purpose machine, in addition to work it is still a young high-lattice toys, play is fun.

Going out for hunting and inspecting the environment

No matter how strong the light is, anything above 0 degrees in nature can be captured such as snakes, pheasants, wild boars, wild birds,

Applications: Electrical ,machinery equipment, HVAC industry, Factory manufacturing, Security ,enforcement, Electric, R & D and production, Building, Maritime border, Fire ,traffic, Production safety, Medical, search and rescue, etc.

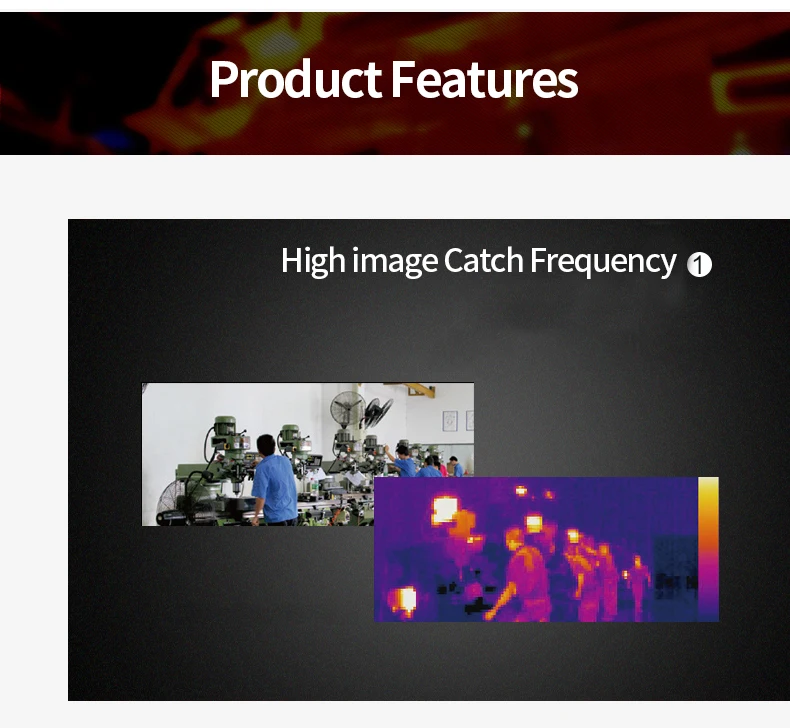

1. High image capture frequency

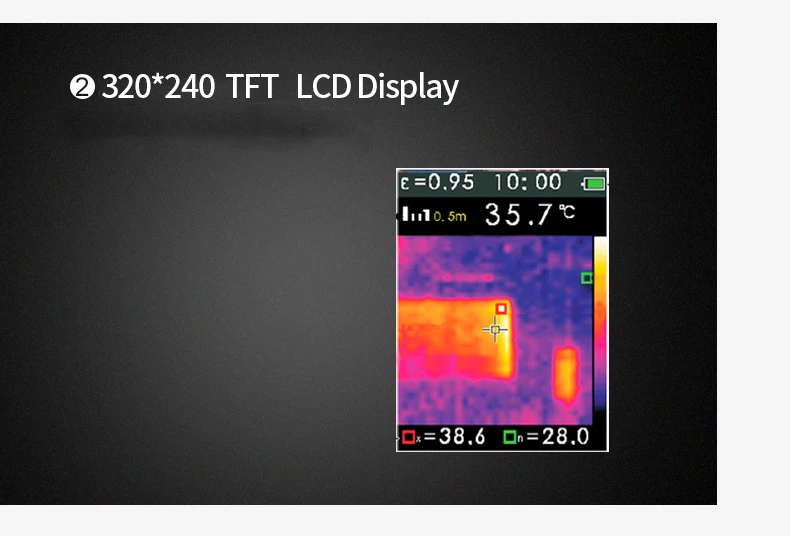

2.320 * 240 TFT LCD display

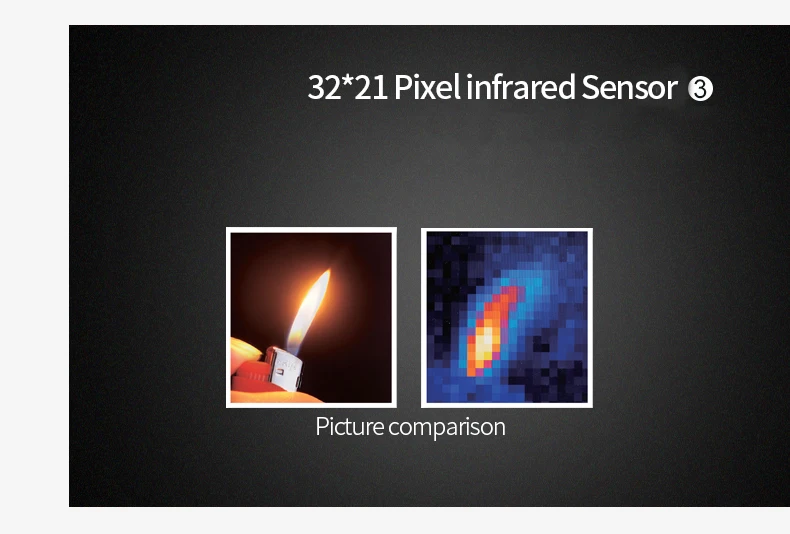

3.32 m 31-pixel infrared sensor

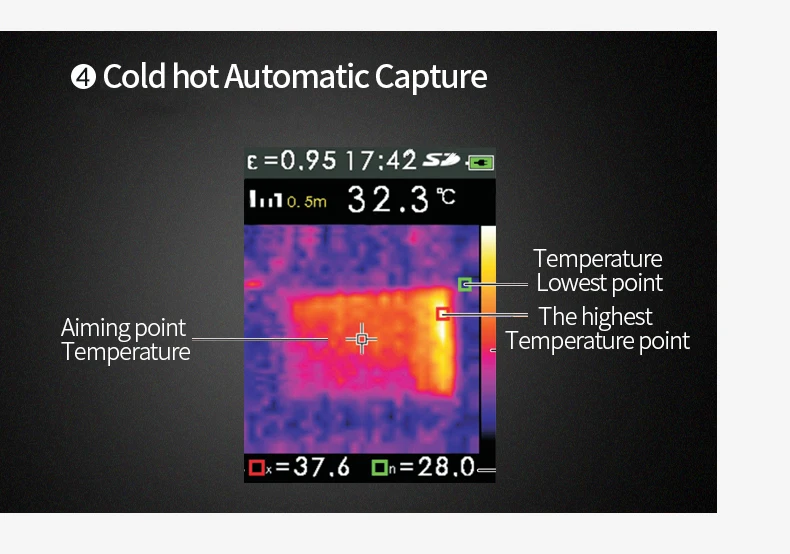

4. Hot and cold automatic capture

5.48608 pixel visible light camera

6. Thermal sensitivity ≤ 150MK



Specifications:

temperature
Temperature measurement range	-20℃to+300℃
Accuracy of temperature measurement	±2%±2℃ as tested(at 25℃)
On-screen emissivity correction	YES
Ambient temperature compensation on the screen	YES
Image performance
Image capture frequency	9HZ
sensor type	uncooled pyroelectric point
Thermal sensitivity	≤ 150MK
Infrared spectral band	6.5μm to 14μm
Visible light camera	48608 pixel
Field of view	40°×39°
focal length	Fixed focal length
Image display mode
Color table
Molten metal	Iron red, rainbow, high contrast, grayscale (white heat), grayscale (black hot)
Level and span	automatic
Fusion of information
Visible and infrared fusion distance	0.5m ,1.0m,2.0m,3.0m
View options	25% full-infrared to full-visible fusion
Hot and cold spot tracking	YES
Image capture and storage
Take pictures	saving image checked before
Storage media	Micro SD, Store up to 4000 photos/GB
File format	BMP
Memory view	you can view or delete stored photos by menu
Operating temperature	0℃to+50℃
Storage temperature	-20℃+60℃
Relative humidity	10% to 90% No condensation
Display	2.2 foot,320×240 TFT LCD
